Under arthroscope, the orthopedics shaver system provides power for planer tool. Repair the injury in the joint.
Commonly used for inspection and surgery of intra-articular diseases; cutting and drilling of human bones; cutting and coagulation of biological tissues during surgery.
Model: SY-DG100
Brand: SHREK
Product Type: Associated Equipment
Warranty: None

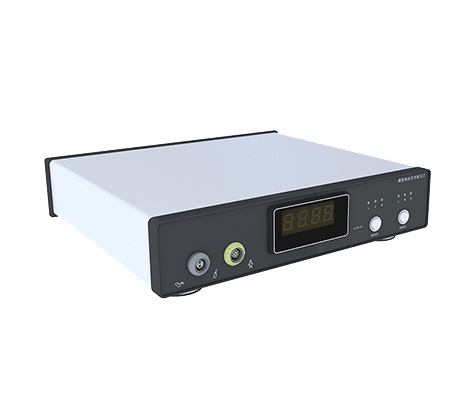

Orthopedic shaver is a special high-speed micro electric surgical instrument newly developed by our company for orthopedic minimally invasive surgery. It is mainly used for endoscopic-guided minimally invasive surgery on pathological tissues in each bone and joint.
Orthopedics shaver system is a medical scientific research instrument used in basic medicine, clinical medicine, traditional Chinese medicine and traditional Chinese medicine.
Fast speed, little trauma, little pain
Easy to install, easy looperale
The special straight-through suction catheter device is not easy to block and cut faster.
The "goose-egg"-shaped light-powered handle has a comfortable hand feel and is easy to grasp.
The whole machine adopts digital circuit, and each function is digital or pattern display. With infinitely variable forward, reverse and reciprocating cutting functions and three speed settings.
The handle has a built-in imported high-power micro-motor, the cable outlet adopts a multi-channel sealing and clamping mechanism, and the whole machine is fully sealed and precision manufactured.
| Power | 220V/50Hz |
| Input power | 100VA |
| Maximum output rotating speed | 9000r.p.m |
| Speed mode | Low, medium and high, three gear stepless speed regulation |
| Suction pipe joint diameter | 8mm |

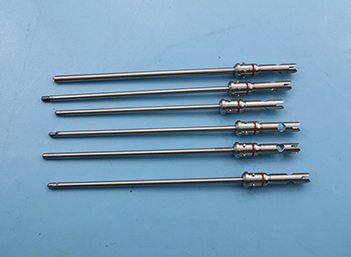

| Tool diameter | 3.0-4.5mm |
| Suction and irrigation flow | ＜800ml/min |
| Suction and irrigation negative pressure | -0.04~-0.06mPa |
