LED Light Source

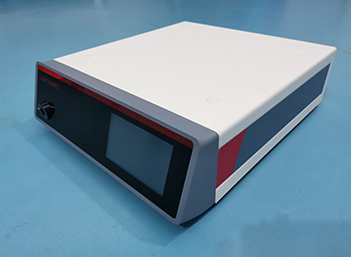

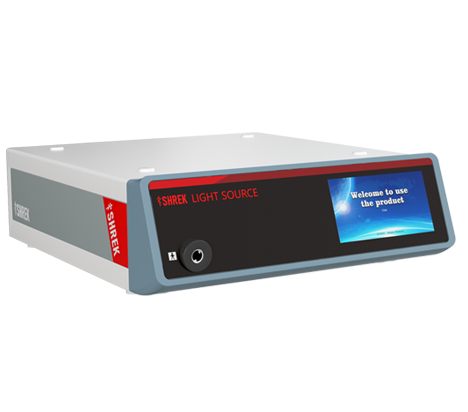

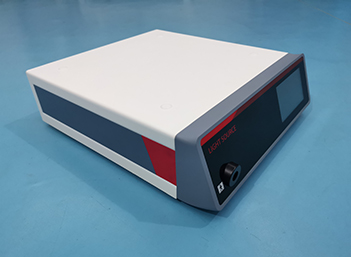

Endoscope LED Cold Light Source 150W

SY-GW1200L-N can be used for arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), cystoscope, percutaneous nephroscope, ventriculoscope, ductoscope, hysteroscopy, proctoscope, sigmoidoscope, urology resectoscope, plastic surgery endoscope, laparoscope, ductoscopy, breast implant endoscope, thoracoscopy, fiber nasopharyngoscope, fiber choledochoscopy, fber bronchoscope, fiber ureteroscope, APP hernia repair, lacrimal passage, minimally invasive varicose veins, etc.

Model: SY-GW1200L-N

Brand: Shrek

Product Type: LED Light Source

Warranty: Three years

Leave A Message Live Chat +86-21-58189111

1. Our endoscope camera system use 304 stainless steel, brushed metal which contributes to cleaning, disinfection and maintenance. Color of machine appearance wont change for long-term use.

2. Set screws use stainless steel material, so screws wont rust off and cause electrical short which extends service life of machine.

3. Baseboard of inner circuit board uses simple brass and protection cover, which is effective protection to anti-jamming of circuit and ground connection.

Advantage

High brightness is comparable to 350W traditional xenon light source, could be used for all rigid endoscope surgery without any problem.
Long working life, it could last more than 40000 hours, 120 times of xenon, so you do not need to replace the bulb for years.
Wide range power from 100-240V/AC; 50/60 Hz.
Perfect color temperature 5000K to 6500K, color rendering is over 70.
Does not emit light in UV or IR.
Customized connector, it accepts fiber light guides with active areas ranging from 3 mm to 10 mm diameter.

Gallery

Endoscope LED Cold Light Source 150W Gallery

Parameter

Input power	150VA
Power supply	AC100-240V 50/60Hz
Light source	LED light
Effective light power	≥150mW
Brightness	≥1,200,000lx
Color temperature	6000±500K
Noise	≤55dB(A)
Surface temperatures	≤60℃
Light out	Diameter: (10±0.10)mm
Host fuse	T2AL 250V AC
Working environment	5℃~40℃

Recommended Surgical Departments
