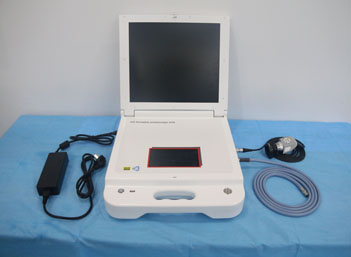

Portable HD Endoscope Camera Unit 17”

SY-GW605 can be used for arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), cystoscope, percutaneous nephroscope, ventriculoscope, ductoscope, hysteroscopy, proctoscope, sigmoidoscope, urology resectoscope, plastic surgery endoscope, laparoscope, ductoscopy, breast implant endoscope, thoracoscopy, fiber nasopharyngoscope, fiber choledochoscopy, fber bronchoscope, fiber ureteroscope, TAPP hernia repair, lacrimal passage, minimally invasive varicose veins, etc.

Model: SY-GW605

Brand: Shrek

Product Type: Portable Endoscope Camera

Warranty: Three years

Leave A Message Live Chat +86-21-58189111

1. Set screws use stainless steel material, so screws wont rust off and cause electrical short which extends service life of machine.

2. Baseboard of inner circuit board uses simple brass and protection cover, which is effective protection to antijamming of circuit and ground connection.

3. All signal cables use double-shielded, enhanced antijamming material which guarantee the antijamming capacity and long working life. The signal cable can stand 50,000 times bend by testing.

Advantage

4 in 1, camera 1000lines + LED light source + monitor+ HD recorder.
Intelligent digital full HD effective pixels: 1920(H)*1080(V)
Multi-output: HDMI*2,SDI,CVBS,VGA,USB
Portable design, convenient for carrying and saving shipping cost
Camera head: Freeze & WB button
Medical grade HD monitor, 17 inch.

Gallery

Portable HD Endoscope Camera Unit 17” Gallery

Parameter

Medical Monitor
LCD screen	17"
Aspect ration	5:4
Endoscopy Camera
Image sensor	1/1.8 CMOS
Brightness	ODS adjustable
Horizontal resolution	1000TVL
Scanning frequency	N:60HZ P:60HZ
Scanning mode	Progressive scanning
Surface temperatures	≤60℃
LED Light Source
Light source	LED light
Input power	80VA
Color temperature	6000±500K
Working life	＞40,000hs
HD Video Recorder
Recording format	MP4
Input signal	HDMI, CVBS
Output signal	HDMI

Recommended Surgical Departments
